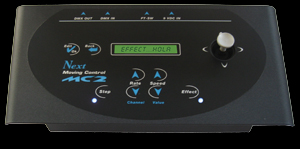

MC2

Universal and easy moving head controller

Technical Features

:: Individual control of up to 16 DMX 512 projectors.
:: 48 DMX channels for each projector (512 total channels).
:: 48 DMX channels for dimmers.
:: 480 programmable steps
:: 96 Built in editable effects for PAN and TILT 8/16 bit.
:: 96 programmable loops for step and effect sequences.
:: Double stage for managing two independent settings.
:: DMX 512 input/output (3/5-pole female XLR connector).
:: 16 characters backlight LCD.
:: Very easy SETUP with the ability to use an external DMX
    controller for Edit and Live functions.
:: SPEED and RATE adjustment, proportional control Joystick.
:: Very simple and user friendly programming.
:: Dimension (L x H x P) 237 x 132 x 40 mm
:: Weight:  2 Kg.
